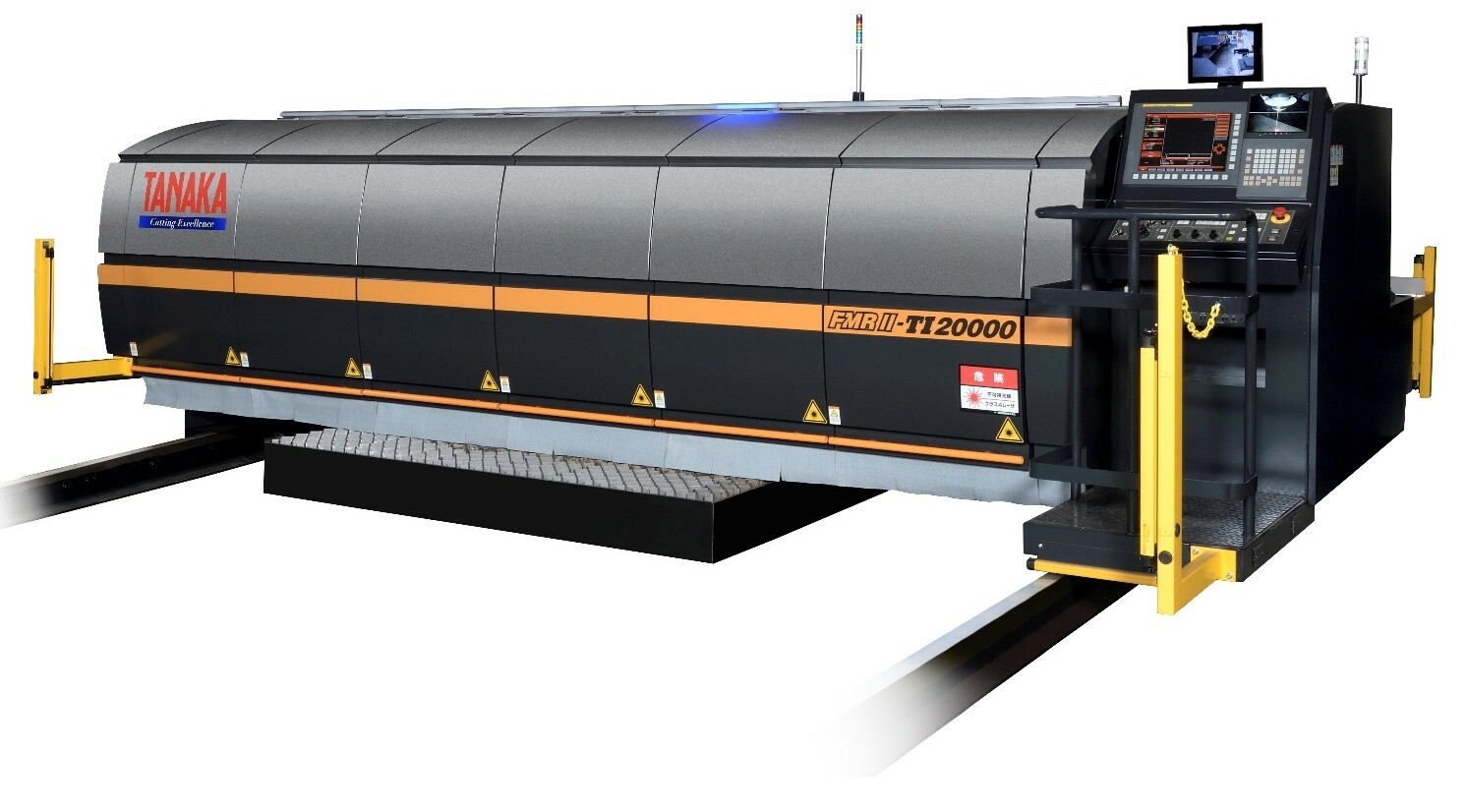

FMRII - Gantry Fiber Laser Cutting Machine
TANAKA America's FMRIl is a strong reliable Laser Cutter resulting from 15 years of fiber laser development work. As the development keeps going, FMRIl is now available with three different levels of oscillator power - 6 kW, 12 kW and 20 kW - The FMRIl delivers unmatched speed, cut quality, and versatility for thick materials and large format cutting. Engineered with TANAKA's proprietary torch head and advanced gas control systems, the FMRII offers superior surface quality, simplified operation, and high productivity for North American fabricators ready to take on the most demanding cutting jobs. Competitive solution to upgrade your CO2 laser or just add extra laser capacity.
What Is the FMRII Gantry Fiber Laser Cutting Machine?
- A high-powered, gantry-style fiber laser cutter designed for large-format and thick-material applications.
- Available in 6kW, 12kW, and 20kW oscillator configurations.
- Features a robust gantry structure for stability and precision over long cuts.
Benefits Over Conventional Systems:
- Cuts significantly thicker material while maintaining high surface quality.
- Higher speeds and shorter cycle times with optimized feed rates.
- Enhanced reliability and safety with TANAKA-developed torch and protective systems.
Key Features and Benefits
Technical Specifications
| Feature | Specification |
|---|---|
| Oscillator Power | 6kW / 12kW / 20kW |
| Laser Type | Fiber |
| Cutting Format | Gantry-style |
| Cutting Thickness | Medium to thick plates max: (6 kW 20 mm / 0.75", 12 KW 30 mm / 0.42", 20 kW 40 mm / 1.57" |
| Cutting Speed | 2-4 times faster than CO2 Laser Cutting Machines |
| Control Interface | User-friendly operation screen |
|
Material Types |
Mild steel, stainless steel, aluminum, and more |
|
Beam Protection |
Machine covers, torch protection, fiber laser-specific tables |
Competitive Advantages of the FMRII
Competitive Strengths:- New added 20kW capacity enables cutting previously impossible thicknesses.
- TANAKA Torch Technology: Precision-engineered in Japan for maximum quality.
- Cutting Speed & Sequence Efficiency: Improved feed systems reduce cycle times.
- Local Presence, Global Backing: Over 30 Years in North America. Trusted support and service in the U.S., Canada, and Mexico.
Our Experts Are Here To Help
FMRIl is a strong tool for medium to thick material and medium to large format cutting. With leading-edge torch technology, intuitive controls, and unmatched power, the FMRII delivers the precision and productivity your operation needs to stay ahead. Competitive solution to replace CO2 equipment or add new production capacity.
Contact TANAKA America today to schedule a consultation or request a demo.
Applications and Industries Served
- Heavy Fabrication & Structural Steel: For thick plate cutting in construction and industrial applications.
- Shipbuilding: High-power cutting for large and durable panels and repair work.
- Ag, Heavy Equipment & Transportation: Frame, chassis, and component production.
- Energy & Infrastructure: Processing specialty metals for power plants, oil & gas projects, bridges and other structures.
- General Metal Fabrication: Broad applications from part manufacturing to OEMs.
