Pipe and Profile Cutting Machines
Tanaka America represents Maruhide tube, pipe and profile cutting equipment in North American market.

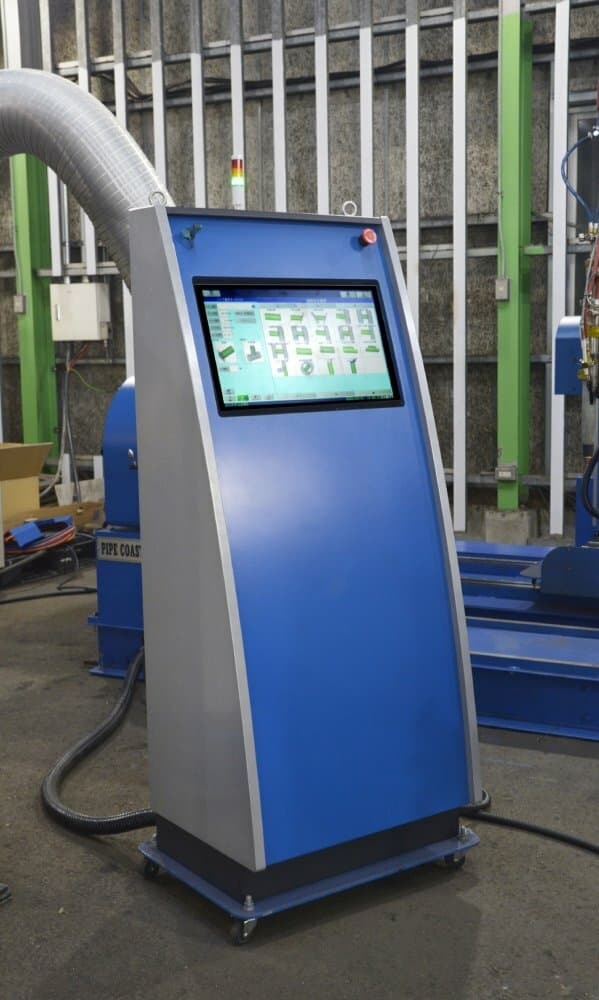

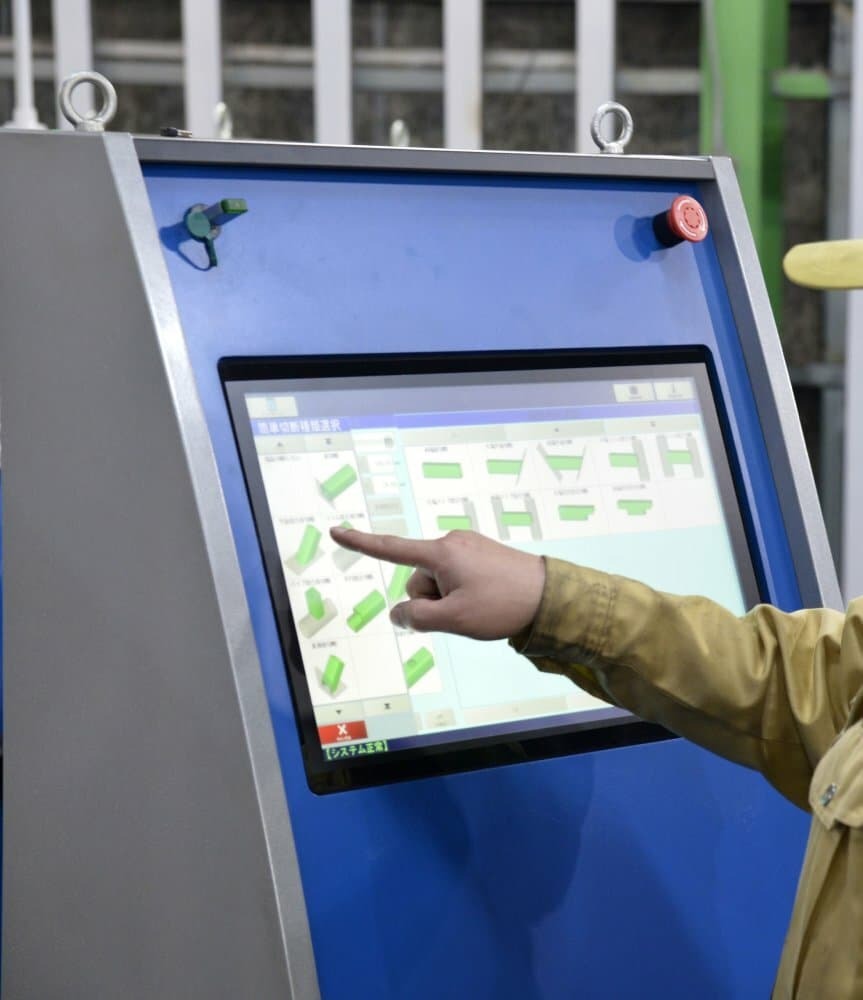

Maruhide tube, pipe and profile cutting machines are automatic, CNC controlled, high speed, high quality, rigid machines. Simple touch screen control makes the machine user friendly to operate when cutting round and square tubes or various profiles. These CNC plasma pipe & profile cutting machines don’t just cut but can also simplify complicated processes, such as marking, by sharing databases. Maruhide has received great responses from around the world.
Maruhide Tube and Profile Cutting Machines
- CNC controlled automatic tube and profile cutting machines
- Easy to operate industrial plasma cutter with preprogrammed cutting shapes
- Fast speed machine with high cutting quality
- Magnetic break-away torch protection system
- Industrial plasma cutter with laser sensing system
- Cutting ranges from 34 mm to 1,500 mm diameter and to18,000 mm in length
Maruhide Pipe and Profile Cutting Machine Models
Maruhide offers tube and pipe cutting machines, and profile cutting machines for H, C and other similar profiles.
Maruhide Pipe Coaster MA Series
CNC controlled, automatic pipe cutting machine with easy-to-use touch screen control to cut pipes from 34 mm to 3,000 mm OD and to 18,000 mm in length.
MA Series Mechanical Specifications
| Specifications/Model | 400MA | 650MA | 1000MA | 1350MA | 1500MA |
|---|---|---|---|---|---|
| Cutting pipe diameter (mm) | 34〜 | 60.5〜 | 76.3〜 | 165.2〜 | 267.4〜 |
| 406.4 | 660.4 | 1016 | 1371.6 | 1524 | |
| Axis numbers (model) | 5 axis (MA5) / 6 axis (MA6) / 7 axis (MA7) | ||||
| Interactive cutting software | Standard | ||||
| Torch travel length (mm) | 1000 / 3000 / 6000 / 9000 / 12000 / 15000 / 18000 | ||||
| Pipe trolley numbers | Torch rail 1000 to 3000 mm x2 sets / 6000 to 9000 mm x3 sets / 12000 mm or more x5 sets | ||||
| Self-centering pipe chuck | 400MA, 650MA, 1000MA: 4 or 5 jaws | 1350MA, 1500MA | |||
| Laser sensing system | Standard | Standard | Standard | Standard | Standard |
| Plasma cutting machine | Standard | Standard | Standard | Standard | Standard |
| Interactive cutting software | Standard | Standard | Standard | Standard | Standard |
| PIPE STUDIO for PC | Standard | Standard | Standard | Standard | Standard |
| Nesting software | Standard | Standard | Standard | Standard | Standard |
| Data conversion software for AUTOCAD | Standard | Standard | Standard | Standard | Standard |
| Cutting software for AWS/API | Standard | Standard | Standard | Standard | Standard |
ALL PROFILE COASTER Specifications

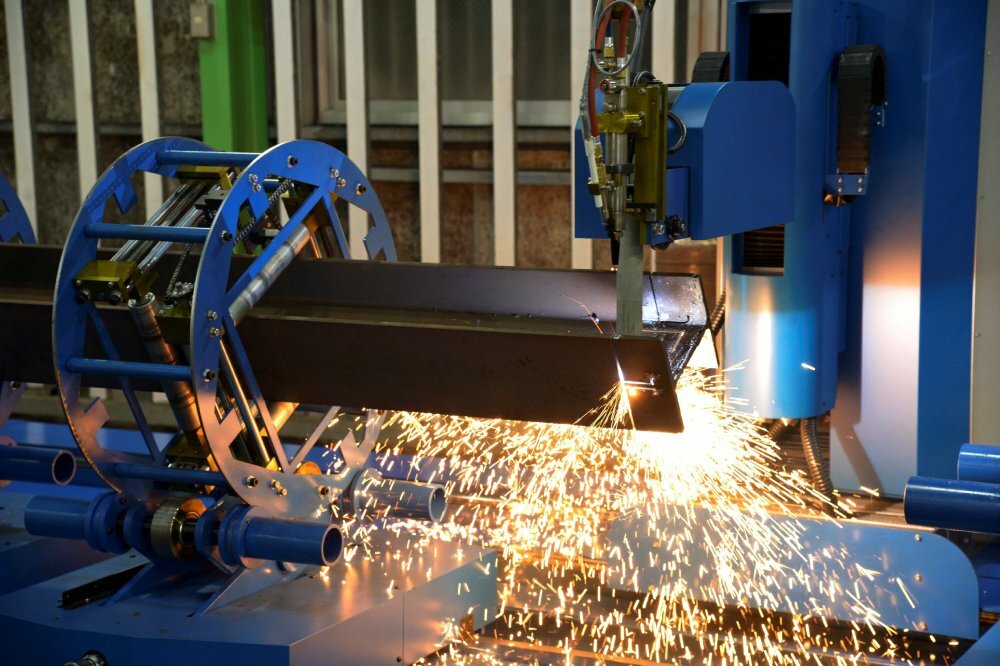

CNC controlled, automatic profile cutting machine with easy-to-use touch screen control to cut H, C and other profiles from 50 mm x 50 mm to 250 mm x 250 mm and up to 6,000 mm in length
| ALL PROFILE COASTER Specifications | ||
|---|---|---|
| How to cut | Plasma | |
| Mechanical length | 300 mm | 6000 mm |
| Material widths | 50 x 50 | 250 mm x 250 mm |
| Maximum product length | Up to 2,000 mm | |
| Maximum loading material weight | 300 kg | |
Our Experts Are Here To Help
Tanaka offers industrial plasma cutters for tube and pipe cutting solutions that can be customized for your manufacturing needs. Contact Tanaka America for further information.
TANAKA America’s Market Advantage
- Global Expertise, Local Support: Backed by Maruhide in Japan.
- Tailored Solutions: CNC Plasma Pipe & Profile Cutting Machines are customizable for industry-specific requirements.
- Engineering Support: Expert pre-sale consultation, material testing, installation, training and after-sale service available in the U.S., Canada, and Mexico.
Industries Served
- Piping for shipbuilding
- Process piping
- Pipe structures
- Profile structures
- General manufacturing
CNC Plasma Pipe & Profile Cutting Machines FAQ’s
Tanaka America's CNC Plasma Pipe & Profile Cutting Machines provide high-speed, 3D precision for complex geometries. Unlike manual methods, these automated systems handle saddle cuts, miters, and holes with perfect repeatability, significantly reducing fit-up time and labor costs in structural steel fabrication.
Our industrial plasma cutters are engineered for versatility, supporting a wide range of pipe and tube sizes. By utilizing advanced 5-6-7axis heads and rotating chucks, the machines maintain a constant torch-to-surface distance, ensuring clean, beveled cuts on both small-diameter tubes and large-diameter industrial piping.
Yes. A primary benefit of our CNC Plasma Pipe & Profile Cutting Machines is the ability to perform precise beveling in a single pass. This eliminates the need for secondary grinding or manual beveling, allowing for immediate "ready-to-weld" joints on pipes and structural profiles.
Our industrial plasma cutters are optimized for a variety of conductive metals, including carbon steel, stainless steel, and aluminum. Whether you are cutting heavy-walled pipe or intricate hollow structural sections (HSS), our plasma technology delivers a narrow kerf and minimal heat-affected zone (HAZ).
Tanaka America provides comprehensive support and intuitive software integration for all CNC Plasma Pipe & Profile Cutting Machines. We ensure your team can easily import CAD files and convert them into precise cutting paths, maximizing the efficiency and uptime of your industrial plasma cutters.
You Can Count on TANAKA America
We support manufacturers across North America with proven equipment and responsive service. If you're considering TANAKA, we'd be happy to talk through it.
