New Product · FMZIII
New: FMZIII 40 kW Bevel Fiber Laser

Thicker plate. Higher speed. 45° bevels on 2" (50 mm) plate that come off the table weld-ready.

Request a QuoteFMZIII Details
TANAKA FMZIII bevel fiber laser
45° bevelUp to 50 mm (1.97")
vs. plasma, 32 mmAbout 2.2x the speed
EdgeWeld-ready, no grinding

The FMZIII, now with 40 kW

TANAKA America has a new product: the FMZIII 40 kW Bevel Fiber Laser. It is the 40 kW version of our FMZIII gantry bevel fiber laser, built to cut thicker plate, cut faster and bevel thicker plate than 20 kW.

+200
mm/min, on thicker plate

Thicker plate at comparable speed

20 kW · 16 mm (0.63 in)4,500 mm/min (177 ipm)
40 kW · 25 mm (0.98 in)4,700 mm/min (185 ipm)
2.2x
About, vs. plasma

Much faster at the same thickness

Plasma · 32 mm (1.26 in)1,300 mm/min (51 ipm)
40 kW MIX · 32 mm2,800 mm/min (110 ipm)
1.8x
About, bevel thickness

Greater bevel thickness

20 kW · 45° top V-bevel28 mm (1.10 in)
40 kW · 45° top V-bevel50 mm (1.97 in)

Cutting data from TANAKA test results. Actual results depend on material grade and condition.

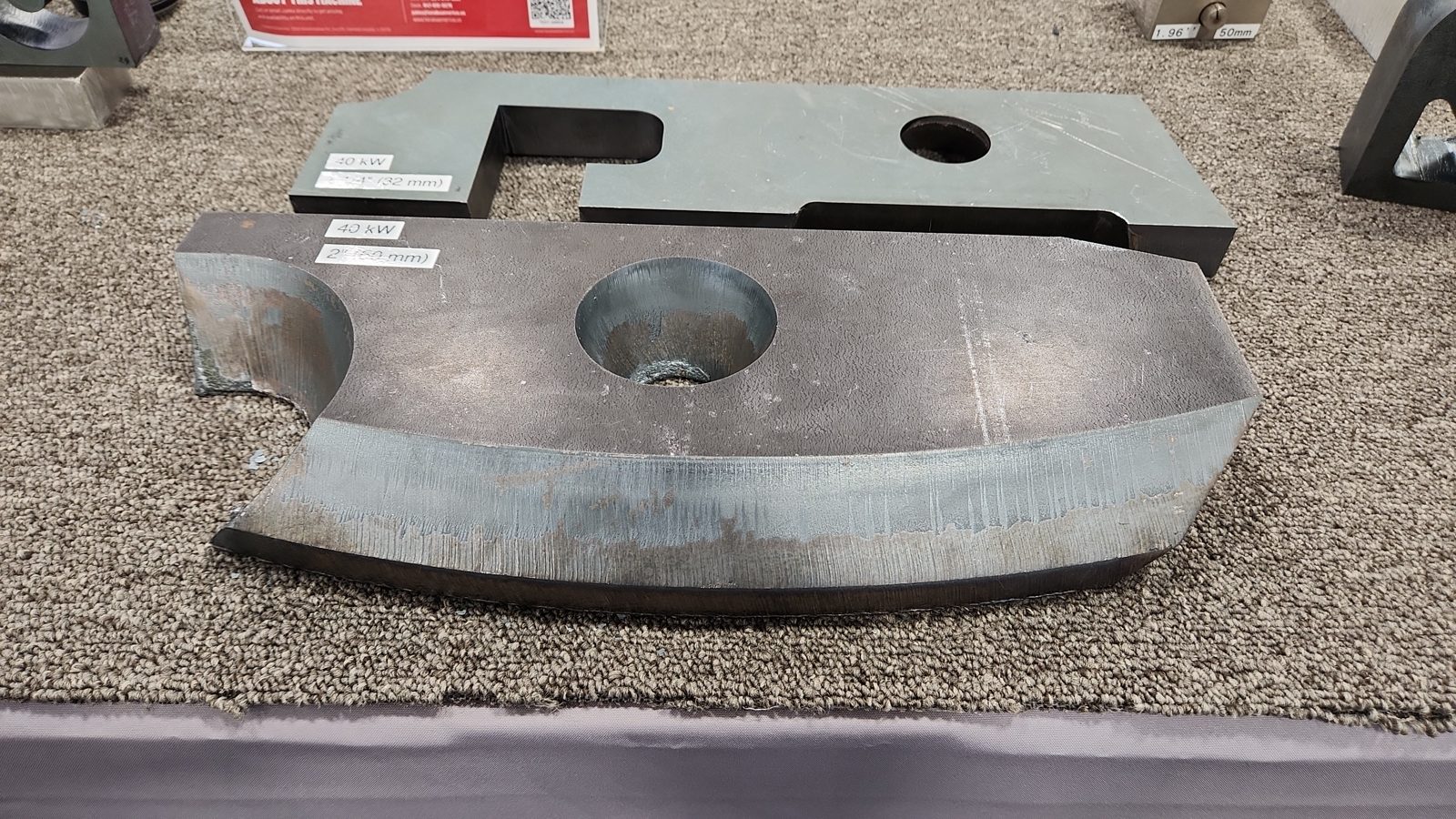

Close-up of 45 degree bevel edge on 2 inch plate cut by FMZIII 40 kW
Plasma or laser?

2" plate. 45° bevel. Weld-ready.

This part is 2" (50 mm) plate with a 45° bevel. Many people would take that edge for plasma. It's a laser cut on the FMZIII 40 kW.

It comes off the table ready to weld, with no grinding or secondary prep.

2" (50 mm) plate, 45° bevel, FMZIII 40 kW.

Send us a part drawing

We'll talk through what the FMZIII 40 kW can do for your work.

Request a Quote

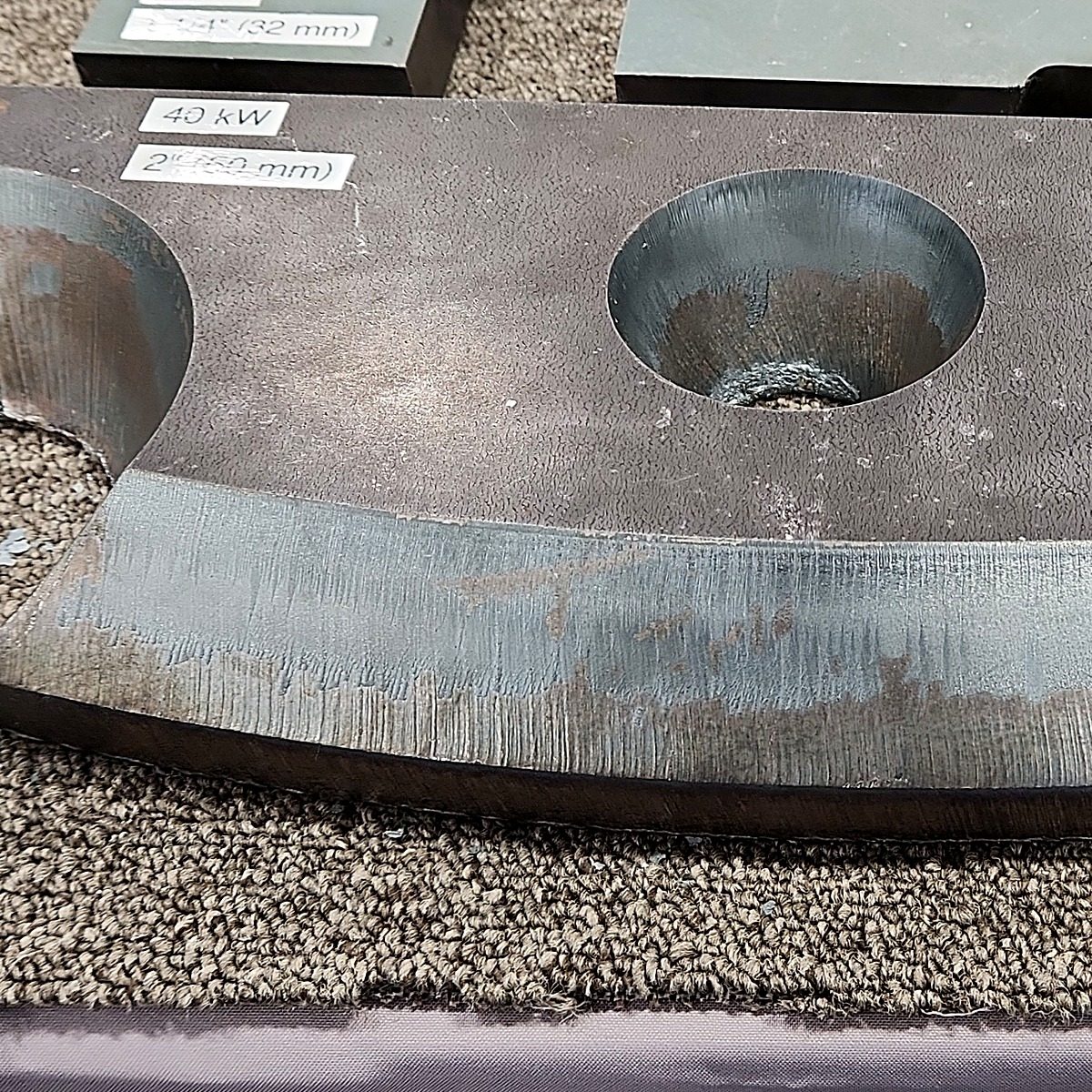

45 degree V-bevel on 2 inch (50 mm) steel plate cut by FMZIII 40 kW fiber laser
